Dashboard

The Mividas Core dashboard provides a clear overview of the platform’s operational status. The interface is divided into several widgets that display essential information, enabling proactive support for the organization.

Widgets overview

The main page grid features insight widgets from various parts of the system, providing a quick overview of the platform’s status.

Widget	Description
	Meeting Room – This widget displays the current number of static virtual meeting rooms. You can directly search for a meeting room or click Show All to navigate to the Meeting Rooms section.
	Scheduled Meetings – This widget shows the number of meetings currently scheduled and upcoming. These can include dynamically created virtual meeting rooms as well as scheduled meetings using, for example, a static personal meeting room. You can directly search for a booked meeting or click Show All to navigate to the Scheduled Meetings section.
	Users – This widget displays the total number of users on the platform. You can directly search for a user or click Show All to navigate to the Users section.
	Ongoing Meetings – This widget displays the current status of ongoing meetings. Clicking on the widget takes you to the Meetings section.
	Participants – Shows the number of people and conference systems currently participating in video meetings. Clicking on the widget takes you to Meetings, where you can see the participants currently in meetings.
	Calls Today – Displays the number of calls made during the current day. Clicking on View all calls takes you to detailed call statistics for the same date period.
	Hours Today – Displays the total hours of video meetings held during the day. Clicking on View all calls takes you to detailed call statistics for the same date period.
	Weekly Statistics – Meeting statistics for the past 7 days are displayed. This graph shows all organizational units for the selected tenant, but you can click on organizational units to hide/show them.

Status overview

The right side of the dashboard displays the status of the connected servers, video clusters/servers and Cisco VCS/Expressway.

Status view

Description

Platform Status – At the top, the status of the Mividas platform is shown, including available licensed products, version numbers, and license validity. Early warnings are provided if a license is nearing expiration. In such cases, contact your supplier or Mividas directly for a renewal. Any platform issues are displayed as error messages in this status view. Status icon: ( ) – Everything is OK. ( ) – The installation has warnings, such as low disk space or an approaching license expiration date. ( ) – There are critical errors in the installation, or the license has expired.

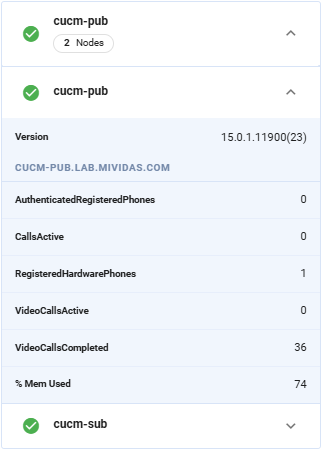

Servers clusters and bridges

The sidebar also provides an overview of all connected servers and their current status.

• Notifications are displayed with severity level, event time, and the option to acknowledge and hide the notifications.
• Detailed information about notifications can be found in the Monitoring section in the left sidebar.

The status icon reflects the highest severity level of active server notifications. For example, if there are three warnings and one error, the status will display Error ( ). If there are no active notifications for the server, the status will show ( )

Status view	Description
	Cisco Meeting Server (CMS) – Shows version numbers, uptime, active calls, and the number of participants in ongoing meetings.
	Pexip Infinity – Displays active calls, the number of participants in ongoing meetings, the total number of available licenses, and the number of licenses currently in use.
	Call Control – Mividas Core supports legacy Cisco VCS Core/Expressway as well as the more modern Cisco Expressway Core/Edge. The displayed information includes uptime, license usage, IP address, and the number of active calls. Any warnings are also shown along with their severity level.
