| Page actions | |
|---|---|
| Add a branding profile. | |
| 1. Page refresh (
) allows you to refresh the view manually 2. Access relevant documentation ( ) |
Add profile

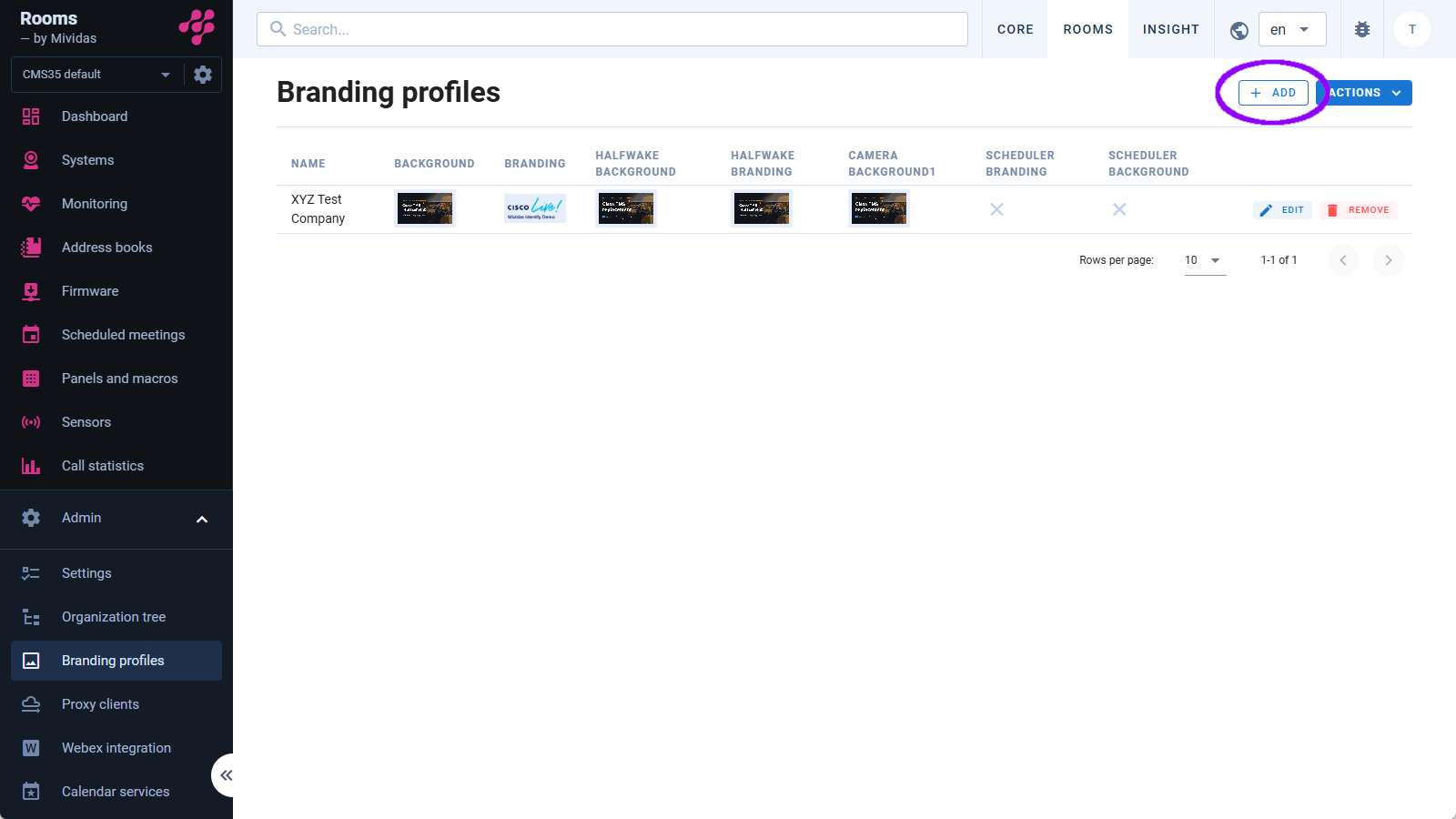

To add a branding profile, click on in the top right corner.

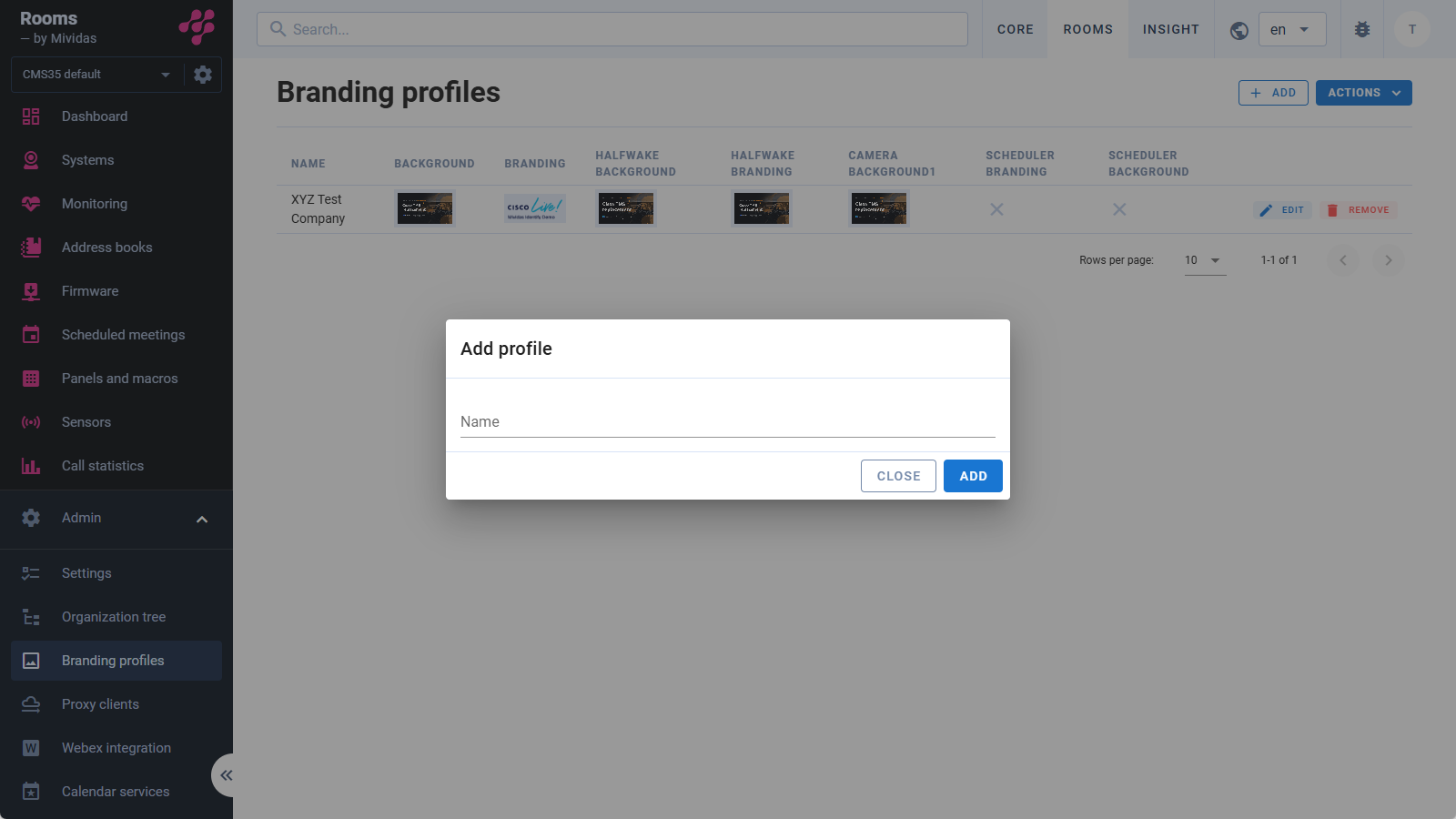

Choose a name for your profile, click to continue or to cancel.

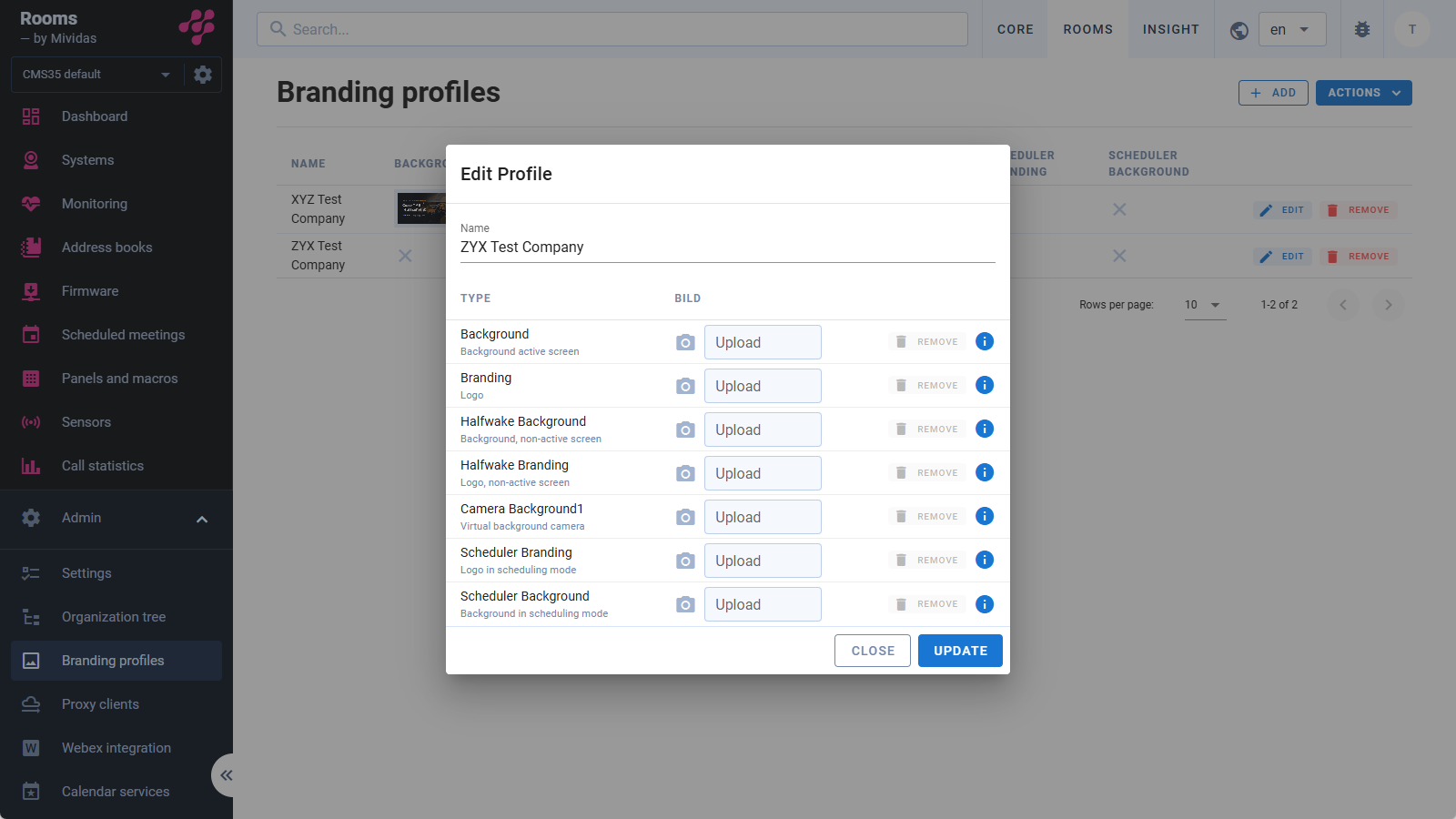

| Option | Description |
|---|---|
| Name | The name of the profile. Filled in from your previous step. |
| Background active screen | The image will be displayed as a background on both the main screen and on the touch panel when the system is awake. Recommendation: 3840x2160px. PNG or JPEG. Important: This will disable OBTP and meeting info. |
| Logo | The logo will be displayed in the bottom right corner on both the main screen and the touch panel. For best results, the logo should be all black/dark, without padding, and with a transparent background. Recommendation: 272x272px. PNG or JPEG. (JPEG do not support transparent background) |
| Background non-active screen | The image will be displayed as a background on both the main screen and on the touch panel when the system is half-awake. Recommendation: 3840x2160px. PNG or JPEG. |
| Logo non-active screen | The logo will be displayed in the bottom right corner on both the main screen and the touch panel. For best results, the logo should be all white/light, without padding, and with a transparent background. Recommendation: 272x272px. PNG or JPEG. (JPEG does not support transparent background) |
| Virtual background camera | The background image for the virtual camera in a webrtc meeting. Recommendation: 1920x1080px. PNG or JPEG. |
| Logo scheduling mode | The logo will be displayed in scheduler mode. Recommendation: 272x272px. PNG or JPEG. |
| Background in scheduling mode | The image will be displayed as a background in scheduler mode. Recommendation: 3840x2160px. PNG or JPEG. |
Click to finish adding your profile, or to cancel.
